1. The water cooler solenoid valve is used for the RO pure water cooler.
2. It features high quality and low price.
3. The water cooler solenoid valve uses PP+ material and has been CE, ROHS and FDA certified.

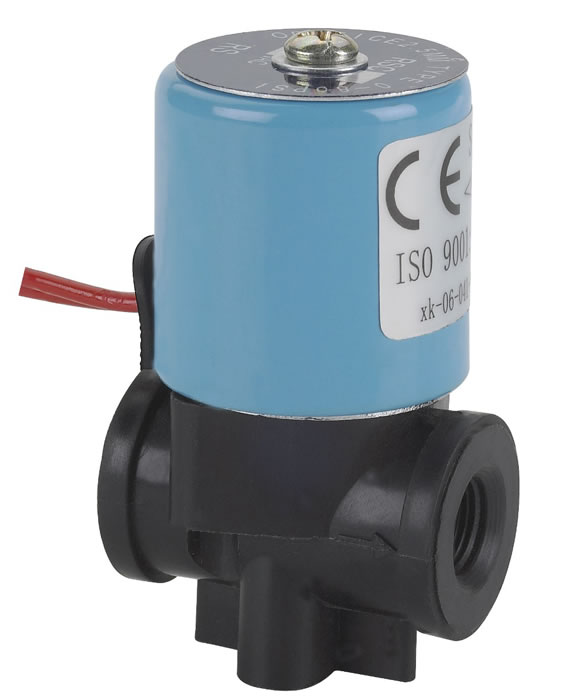

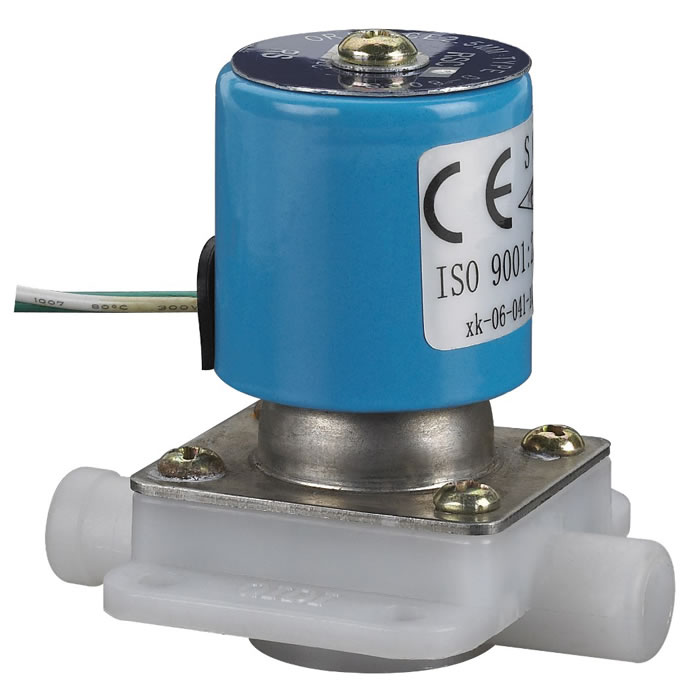

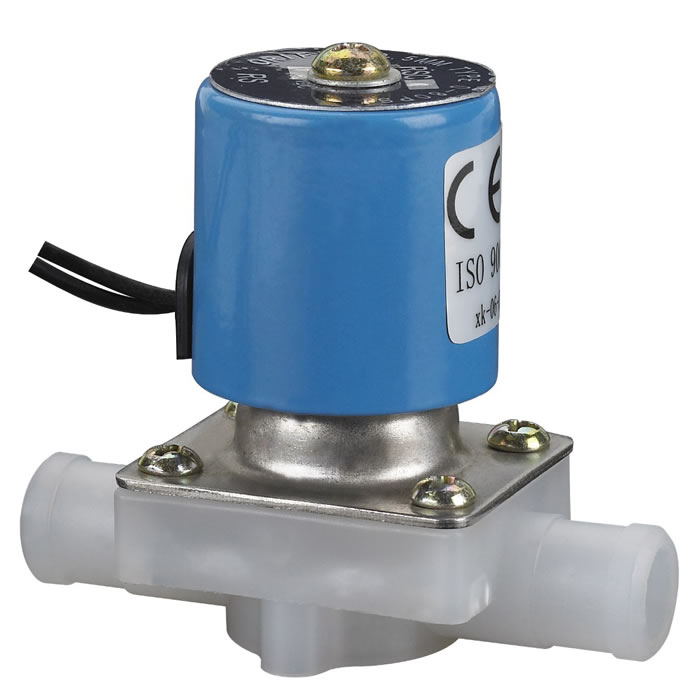

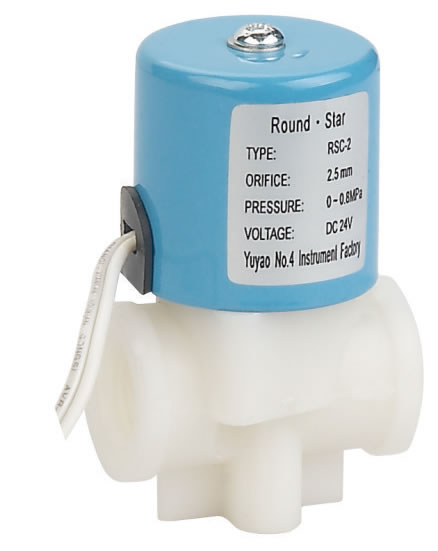

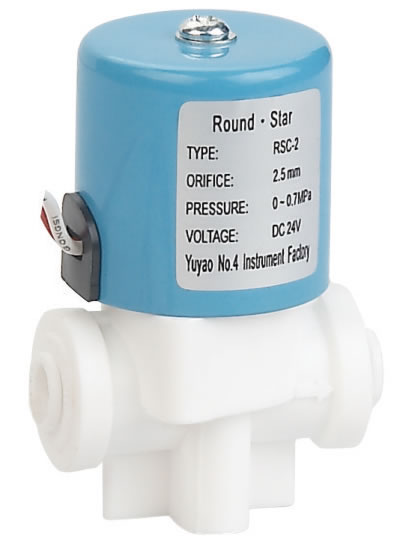

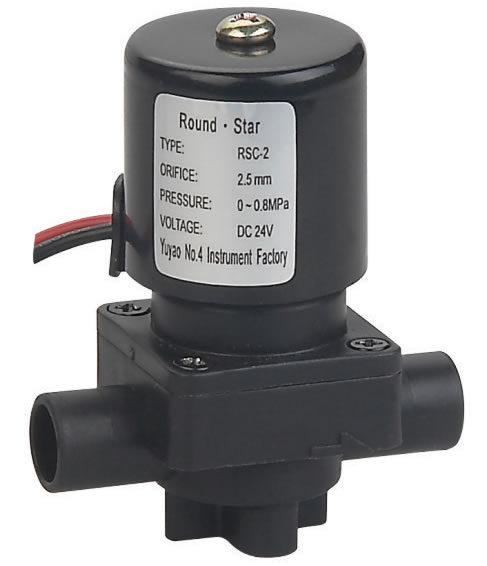

RSC Water Cooler Solenoid Valve

Features of RSC Water Cooler Solenoid Valve
1. The RSC water cooler solenoid valve is a valve for use with liquid and gas.
2. The temperature of the medium is between 0 and 100℃.
3. The ambient temperature is -10~40℃.
4. The acting pattern: direct acting type.
5. Working pressure: normally closed: 0-8bar.
6. The RSC water cooler solenoid valve is sealed by the EPDM.
7. Materials: PP 1/8" black; 1/4"white.
8. The heat resistance: Class B 130℃.
9. Continuous use: 100%.
10. The length of the wire: 30cm (12").
11. The RSC water cooler solenoid value has been CE, ROHS and FDA certified.

Technical Parameters of the RSC Water Cooler Solenoid Valve
Product Model Screw Thread G Orifice Diameter mm Cv value L mm H mm Working Pressure (bar) Remarks
RSC-1 G1/8'' 2.5 0.2 38 67 0-8 Mounting holes are available at the bottom
RSC-2 G1/4'' 2.5 0.2 38 67
RSC-2 Tube connection style 2.5 0.2 40 67 The inlet strainer is available with a ∮6mm hole for tube connection
RSC-2L 2.5 0.2 54 56
RSC-8 8 1.3 65 61 600mm Water column pressure Please refer to the Installation Sketch for installation details
RSC-10 10 2.3 69 61
RSC-12 12 3 59 70

YUYAO NO.4 INSTRUMENT FACTORY is a China-based water cooler solenoid valve manufacturer and supplier.  We offer water cooler solenoid valve, plastic solenoid valve, water air solenoid valve and so on.  Our high quality products are offered at competitive prices.  We can complete the full chain of manufacturing plate gas solenoid valve, liquid mini solenoid valve, etc. right here in China.  Our lower manufacturing cost saves your purchasing cost.  More details on each of our products are shown on the description page.
