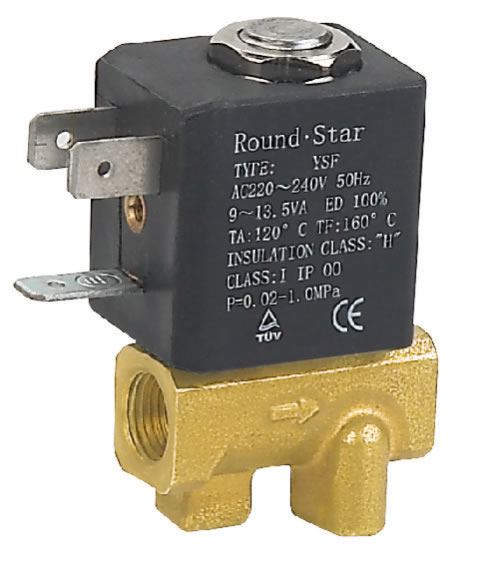

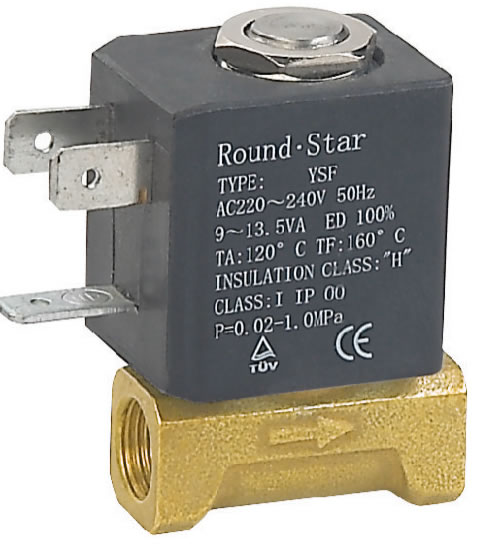

Features of YSF Irons and Coffee Pot Solenoid Valve
1. The YSF irons and coffee pot solenoid valve is a valve for use with water, gas and liquid in low viscosity.
2. Working pressure: 0.02~1.0Mpa.
3. Operating temperature: -5~180℃.
4. Acting pattern of the YSF irons and coffee pot solenoid valve: direct acting.
5. Working pattern: normally closed.
6. Working voltage: AC220~240V.
7. Voltage range: ±10%.
8. Insulation class: H.
9. Service life: 500000 times.
10. The YSF irons and coffee pot solenoid valve is sealed by the VITON or the silicon rubber.
11. Materials: brass.

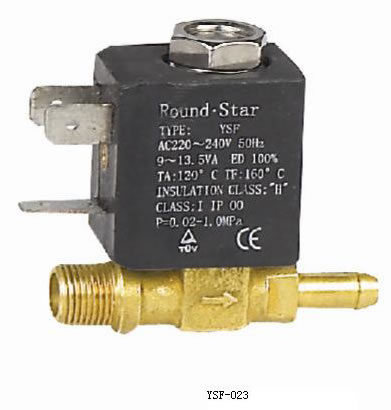

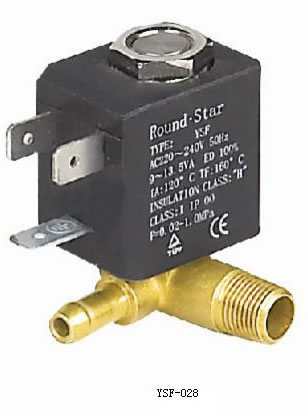

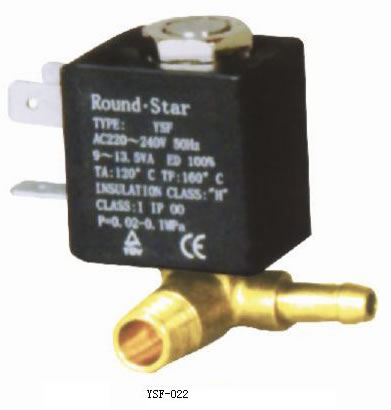

| Model | YSF-022 | YSF-023 | YSF-028 | ||||||
| Diameter mm | 1.5 | 2 | 2.5 | 1.5 | 2 | 2.5 | 1.5 | 2 | 2.5 |
| Working pressure bar | 0.2~12 | 0.2~10 | 0.2~10 | 0.2~12 | 0.2~10 | 0.2~10 | 0.2~12 | 0.2~10 | 0.2~10 |

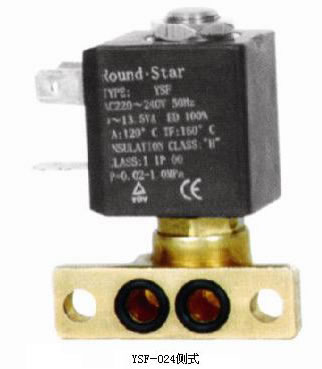

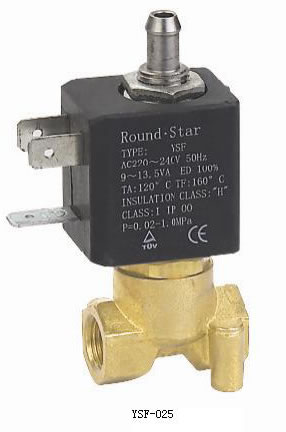

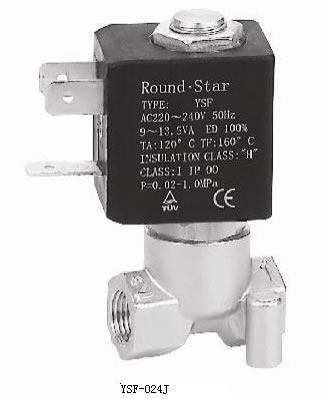

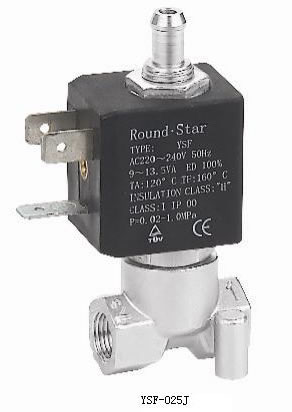

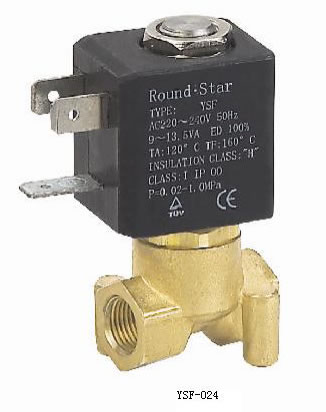

| Model | YSF-024 | YSF-024J (SUS316) | YSF-025 | YSF-025JK (SUS316) | YSF-024 Side Type | ||||||
| Diameter mm | 1.5 | 2 | 2.5 | 1.5 | 2 | 1.5 | 2 | 2.5 | 1.5 | 2 | 5.5 |
| Working pressure bar | 0.2~12 | 0.2~10 | 0.2~10 | 0~12 | 0~10 | 0.2~12 | 0.2~10 | 0.2~10 | 0~12 | 0~10 | 0~10 |
| Model | YSF-027 | YSF-026 | ||||
| Diameter mm | 1.5 | 2 | 2.5 | 1.5 | 2 | 2.5 |
| Working pressure bar | 0.2~12 | 0.2~10 | 0.2~10 | 0.2~12 | 0.2~10 | 0.2~10 |
Note: The products have been CE, TUV and ROHS certified.
