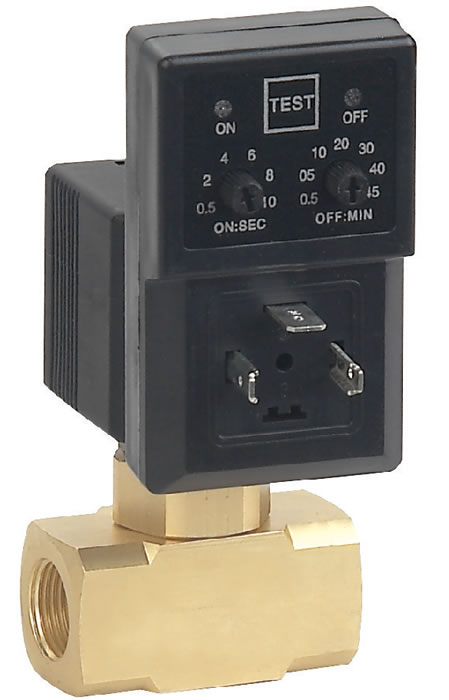

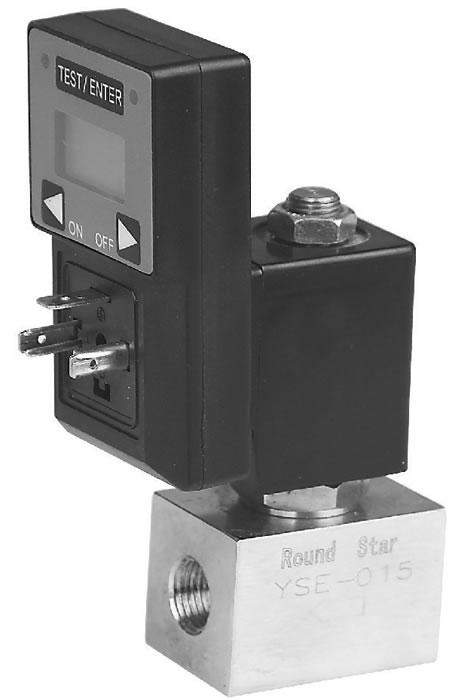

Exhaust Solenoid Valve

Exhaust Solenoid Valve
Feedback Form

Features of Exhaust Solenoid Valve
1. The exhaust solenoid valve is a valve for use with liquid and compressed gas.
2. The temperature of the medium is equal to or less than 180℃.
3. The acting pattern: two position two way direct acting type.
4. Operating pattern: normally closed.
5. The exhaust solenoid valve is made with brass or stainless steel.
6. It is sealed by the NBR, VITON or PTFE membrane.
7. Protection degree of the coils: IP65.

Technical Parameters of the Exhaust Solenoid Valve
Model YSV-Z YSE010-Z
Working pressure 0~16bar 0~60bar
Diameter mm Ф1~Ф4mm Ф1~Ф3mm
Screw thread G1/8 , G1/4,G3/8,G1/2
Voltage and power AC 32VA;DC 18W
Turn on time 0.5~99seconds
Turn off time 0.5~99minutes

Note: The technical parameters for the timer can be seen in the sample book at P52.

YUYAO NO.4 INSTRUMENT FACTORY is a China-based exhaust solenoid valve manufacturer and supplier.  We offer exhaust solenoid valve, pilot solenoid valve, water cooler solenoid valve and so on.  Our high quality products are offered at competitive prices.  We can complete the full chain of manufacturing coffee pot solenoid valve, gas plastic solenoid valve, etc. right here in China.  Our lower manufacturing cost saves your purchasing cost.  More details on each of our products are shown on the description page.
