Features of VX2, VX3 Gas and Liquid Solenoid Valve
1. The VX2, VX3 gas and liquid solenoid valve is a valve for use with water, gas and oil.
2. Medium temperature: -10~120℃.
3. Acting pattern of the VX2, VX3 gas and liquid solenoid valve: direct acting.
4. Working pattern: normally closed or normally open.
5. Working voltage: AC220V, DC24V.
6. Materials: brass.
7. The VX2, VX3 gas and liquid solenoid valve is sealed by the VITON.
8. Protection degree of the coils: encapsulate coil: IP65.

Pictures of VX2, VX3 Gas and Liquid Solenoid Valve
VX2

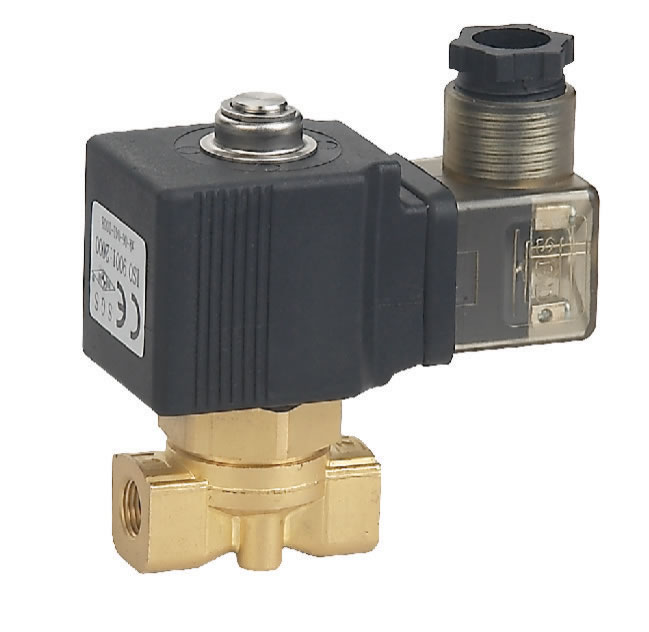

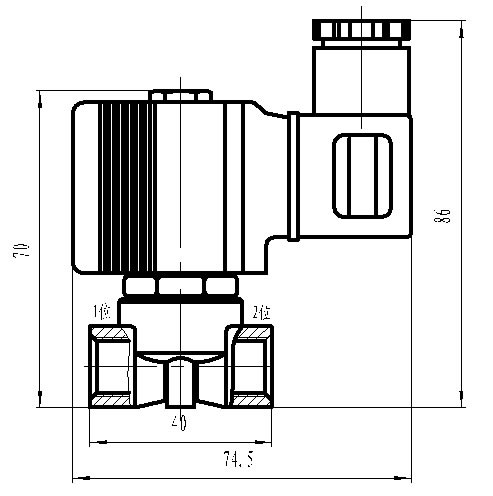

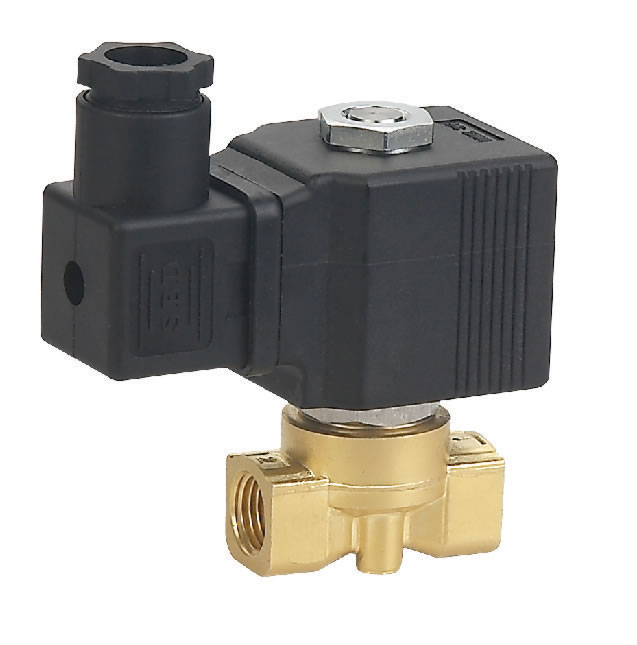

VX2 (two position and two way, normally closed)
VX2 (two position and two way, normally closed)

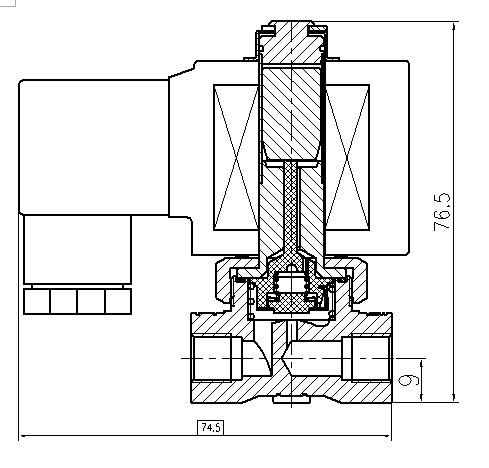

VX2 (two position and two way, normally open, medium temperature: -5~80℃)
VX2 (two position and two way, normally open)

VX3

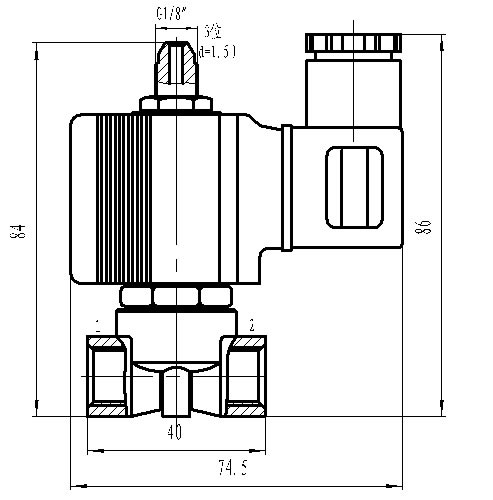

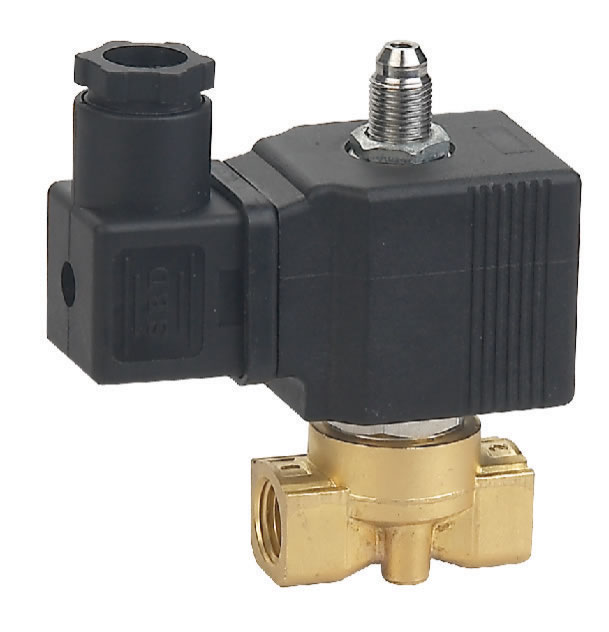

VX3 (two position and three way; supply hole: 1 or 3,normally open; supply hole: 2, normally closed)
VX3 (two position and three way; normally open, normally closed; voltage range: AC -15%~10% DC ±10%)

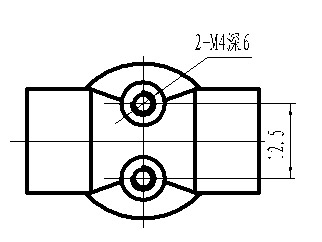

Installation size for the foundation

Technical Parameters of the VX2, VX3 Gas and Liquid Solenoid Valve
Model Working Pattern Diameter (mm) Screw Thread Working Voltage (Bar) Cv Factor
AC DC
VX2-020-06 (08) Two position and two way (normally closed)  2.0 G1/8″ or G1/4″     0~20 0~15 0.12
VX2-030-06 (08) 3.0 0~12 0~8 0.19
VX2-045-06 (08) 4.5 0~6 0~4 0.35
VX3-015-06 (08) Two position and three way (normally open) 1.5 0~15 0~12 0.06
Two position and three way (normally closed) 1.5 0~10 0~10 0.06
        Gas Water Oil
VX2-020-06 (08)K Two position and three way (normally open)   2.0       0~15 0~10 0~8 0.18
VX2-030-06 (08)K 3.0 0~7 0~7 0~4.5 0.33
VX2-045-06 (08)K 4.5 0~3 0~3 0~2 0.61

YUYAO NO.4 INSTRUMENT FACTORY is a China-based gas solenoid valve manufacturer and supplier.  We offer liquid solenoid valve, pilot solenoid valve, liquid mini solenoid valve and so on.  Our high quality products are offered at competitive prices.  We can complete the full chain of manufacturing steam solenoid valve, gas plastic solenoid valve, etc. right here in China.  Our lower manufacturing cost saves your purchasing cost.  More details on each of our products are shown on the description page.
