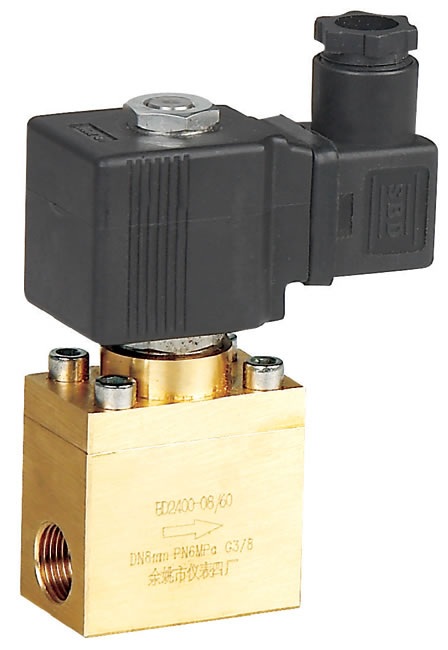

BD High Pressure Solenoid Valve

BD High Pressure Solenoid Valve
Feedback Form

Features of BD High Pressure Solenoid Valve
1. The BD high pressure solenoid valve is a valve for use with gas and liquid.
2. Operating pattern: normally closed or normally open.
3. Materials: brass.
4. Operating pressure of the BD high pressure solenoid valve: 1~60bar.
5. Voltage: AC220V, 110V, AC power 32VA; DC24V 12V, power 18W.
6. Voltage range: ±10%.
7. Protection degree of the coils: IP65.
8. The acting pattern: two position two way.

Technical Parameters of the BD High Pressure Solenoid Valve
Model BD2400-04 BD2400-05 BD2400-06 BD2400-08 BD2400-10 BD2400-12
Diameter (mm) 4 5 6 8 10 12
Nominal pressure bar 60
Operating pressure bar 1~60
Acting type Pilot type
Medium Gas and liquid
Temperature of the medium ≤80℃
Screw thread joint G1/4, G3/8 G1/2, G3/8
Valve size 48*30 60*35
H (mm) 102 117

Note: BD high pressure solenoid valve uses the German NASS coil when the working pressure is between 60bar and 120bar.  Mention it on the order if you need it.

YUYAO NO.4 INSTRUMENT FACTORY is a China-based high pressure solenoid valve manufacturer and supplier.  We offer high pressure solenoid valve, pilot solenoid valve, liquid plastic solenoid valve.  Our high quality products are offered at competitive prices.  We can complete the full chain of manufacturing water cooler solenoid valve, exhaust solenoid valve, etc. right here in China.  Our lower manufacturing cost saves your purchasing cost.  More details on each of our products are shown on the description page.
