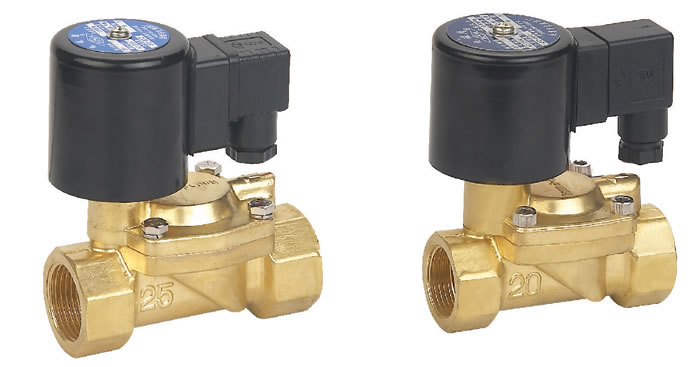

Features of DFD Solenoid Valve
1. The DFD solenoid valve is a valve for use with the water, liquid, gas and oil(less than 20CST).
2. The temperature of the medium is between -5 and 80℃.
3. The acting pattern: pilot type.
4. Working pressure normally closed: 0.3~12bar, normally open: 0.3~8bar .

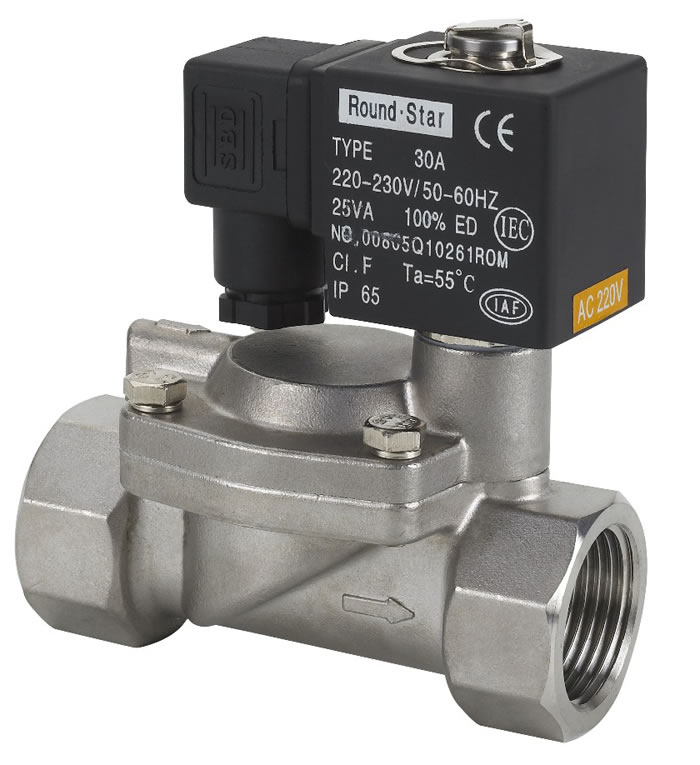

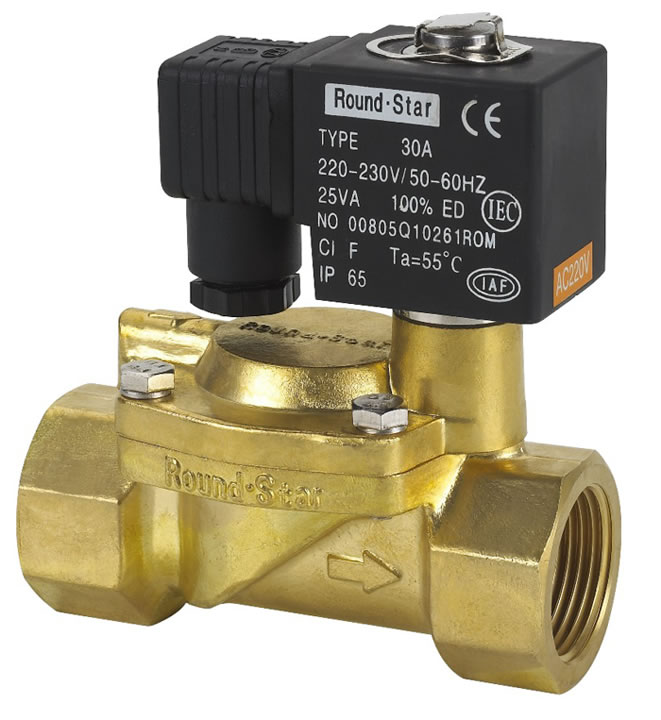

5. The DFD solenoid valve is made with forged brass, precision casting stainless steel or precision casting iron.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils Encapsulate coil: IP65, ironclad coil: IP54.
Special Orders for DFD Solenoid Valve
1. In addition to the standard solenoid valve, we offer the solenoid valve with the working pressure of 16bar. You can order it if you need.
2. If you order the solenoid valve with the VITON membrane, you should mark a V on the order form. This valve is used with mediums at maximum temperature of 130℃.
3. If you prefer the EPDM membrane, then mark an E on the order form. This valve is for use with mediums at maximum temperature of 110℃.
4. We offer stainless steel flanges and cast iron flanges to joint the DFD solenoid valve. Simply mark it out on the order if you need them.
| Model | Joint | Diameter | CV | L | H | Medium Temperature ℃ |
Operating Pressure | Max durability | Voltage | Materials |
| mm | mm | Bar | Bar | |||||||
| DFD-15 | G1/2 | 15 | 3.73 | 80 | 105 | -5 ~ 80℃ | Normally closed:0.3~12 (0.3~16) Normally open: 0.3~8 |
16 | 220V AC/50 HZ 27VA; 110V AC/60HZ 25VA; DC24V 13 W; DC12V 13W; voltage range: ±10%; DFD solenoid valve in other voltage range can be made to order. |
Forged brass Stainless steel: SUS304, SUS316 Casting iron |
| DFD-20 | G3/4 | 20 | 7 | 87 | 114 | |||||
| DFD-25 | G1 | 25 | 11.1 | 107 | 122 | |||||
| DFD-32 | G11/4 | 32 | 14 | 129 | 131 | |||||
| DFD-40 | G11/2 | 40 | 24.5 | 145 | 142 | |||||
| DFD-50 | G2 | 50 | 35 | 177 | 155 | |||||

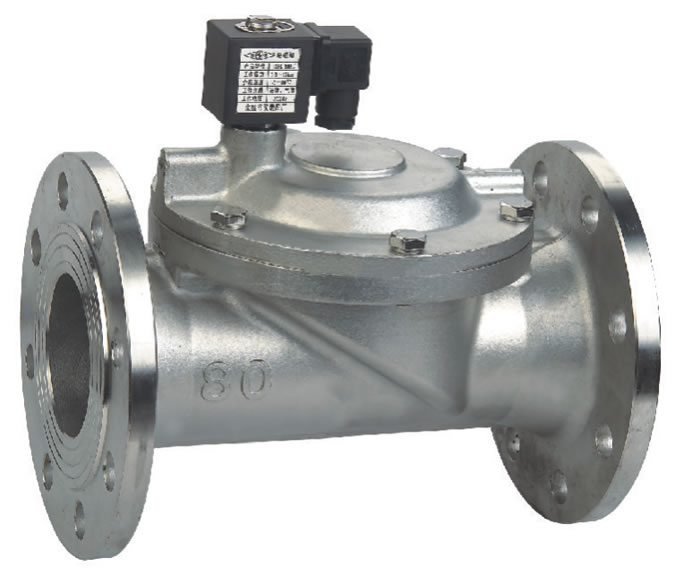

| DFD-25JF | Stainless steel flange joint | 25 | 11.1 | 141 | 165 | |||||
| DFD-32JF | 32 | 14 | 158 | 185 | ||||||
| DFD-40JF | 40 | 24.5 | 173 | 196 | ||||||
| DFD-50JF | 50 | 35 | 204 | 200 | ||||||
| DFD-65JF | 65 | 52 | 256 | 248 | ||||||
| DFD-80JF | 80 | 82 | 277 | 268 | ||||||

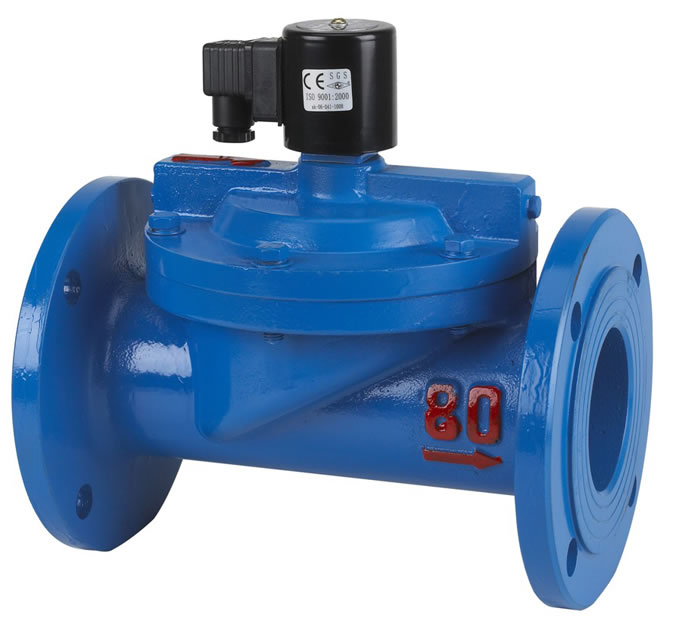

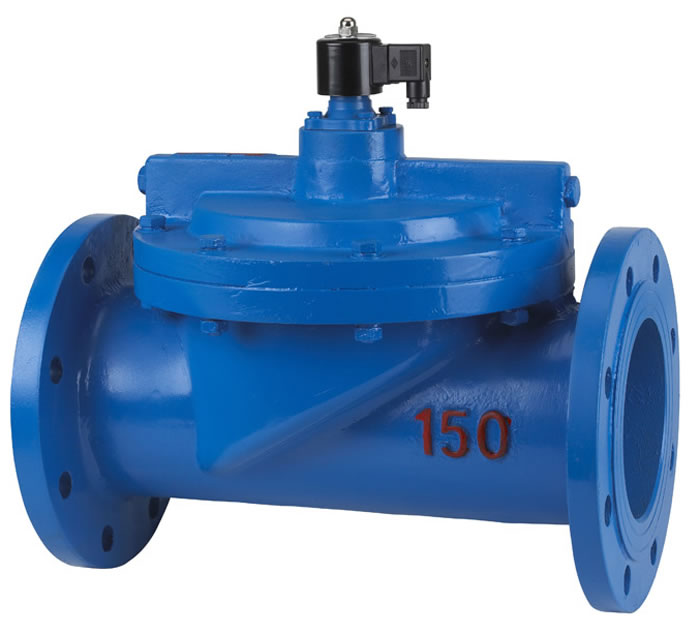

| DFD-40F | Casting iron flange joint | 40 | 24.5 | 169 | 196 | |||||
| DFD-50F | 50 | 35 | 201 | 200 | ||||||
| DFD-65F | 65 | 52 | 259 | 280 | ||||||
| DFD-80F | 80 | 82 | 280 | 287 | ||||||
| DFD-100F | 100 | 128 | 352 | 330 | ||||||
| DFD-125F | 125 | 222 | 430 | 437 | ||||||
| DFD-150F | 150 | 292 | 454 | 460 | ||||||
| DFD-200F | 200 | 513 | 573 | 547 |
Note: The dimensions of the DFD-J stainless steel solenoid valve can refer to the DFD brass solenoid valve.
