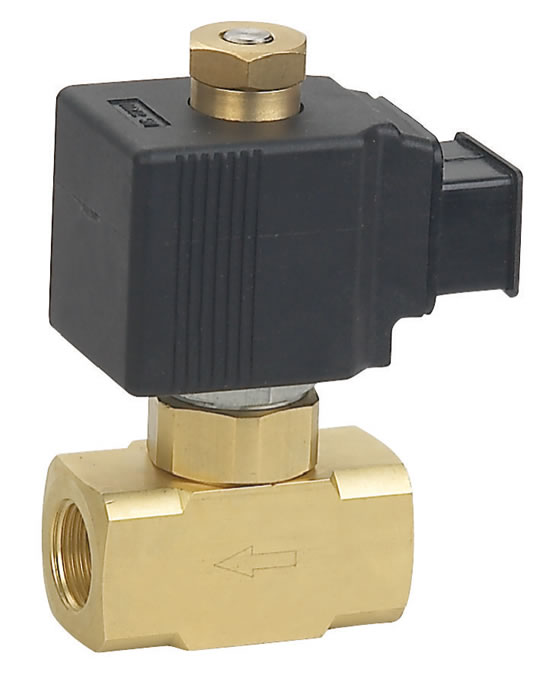

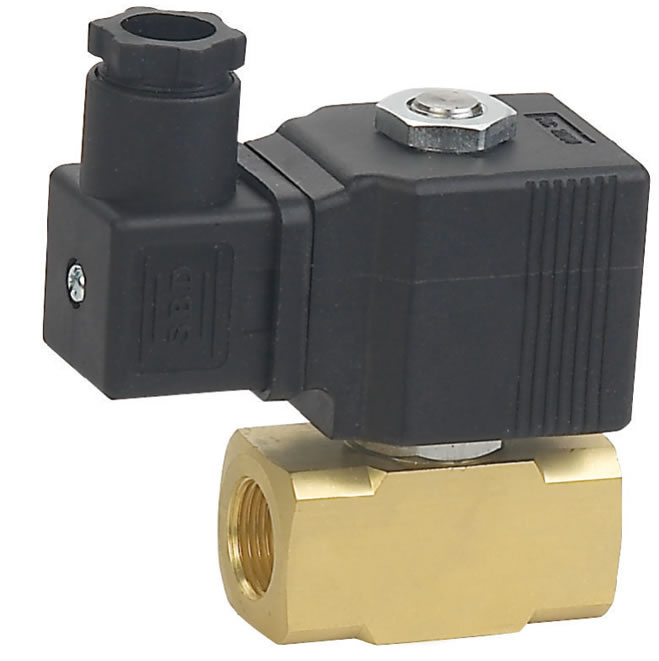

Features of YSV Solenoid Valve
1. The YSV solenoid valve is a valve for use with water, liquid, gas and oil (less than 20CST).
2. The temperature of the medium is between -5 and 80℃.
3. The acting pattern: direct acting.
4. The YSV solenoid valve uses the normally closed or normally open pattern.
5. The YSV solenoid valve is made with brass.
6. It is sealed by the VITON membrane.
7. Protection degree of the coils: IP65.
8. Working voltage: AC220V, power: 22VA; DC24V, power: 14W.
9. Voltage range: ±10%.

Technical Parameters of the YSV Solenoid Valve
Model Diameters mm Screw Thread G Operating Pressure Bar CV L (mm) H (mm)
YSV04 4 G3/8 0~12 0.26 50 82
YSV05 5 G1/2 0~6 0.38 53 83.5
YSV02K 2 G3/8 0~3 0.12 50 91
YSV04K 4 G3/8 0~2 0.26 50 91

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer of solenoid valve, based in China. We offer various types of products such as solenoid valve, low power solenoid valve, coffee pot solenoid valve and so on. Our products are high quality and competitively priced. We can complete the full chain of manufacturing plastic solenoid valve, steam solenoid valve, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. A more detailed description of our product is shown on the page.
