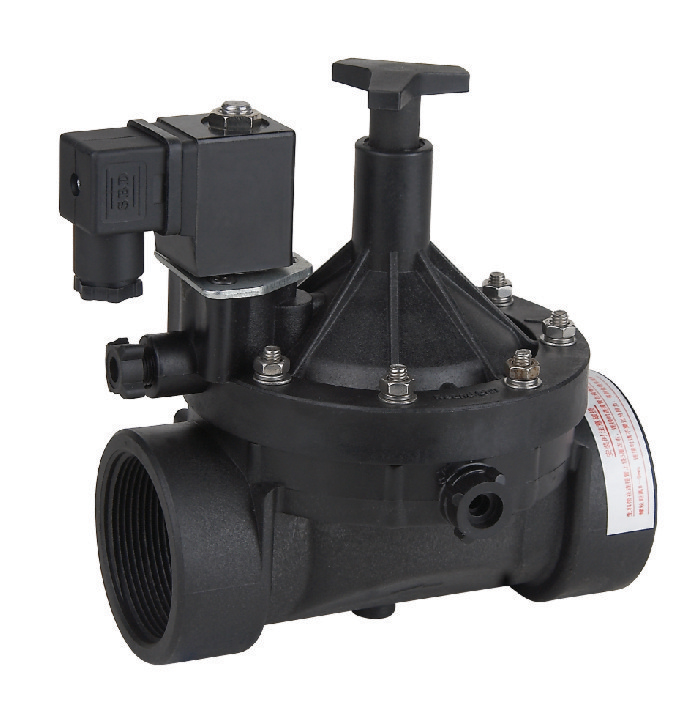

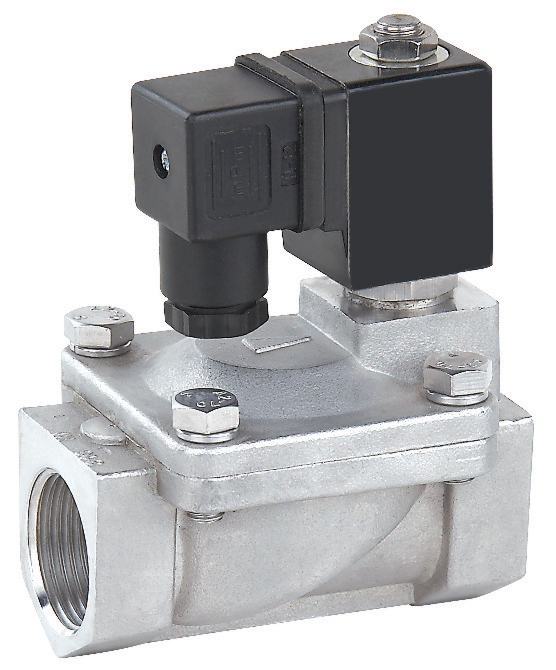

YSZ Bistable Solenoid Valve

YSZ Bistable Solenoid Valve
Feedback Form

Applicable Medium: fluid, gas
Medium Temperature: -5 ~ 80℃
Action Mode: pilot-operated
Working Pressure: 0.5~13bar (under normally closed condition)
Valve Material: brass, stainless steel or nylon PA66(model: YSZ-40S, YSZ-50S)
Membrane Material (Membrane seal): NBR
Coil Protection Class: plastic package coil IP65

Features
1. YSZ bistable solenoid valve is a special valve with pulse bistable and self-holding normally closed characters.
2. It adopts special coil, high-quality magnetic material and solid mould pressing membrane (main valve seal) so that it has the characteristics of stable property and high reliability.
3. The on/off status of solenoid valve depends on the power polarity.
4. This valve could be widely applied in the intelligent automation control system like garden irrigation and agriculture irrigation.

Technical Parameters
ModelConnector GDiameterCV ValueLength (mm)Height (mm)Working PressureRemark
YSZ-103/8103.5661120.5~13barDN15~50mm, fit with copper or steel flange
YSZ-151/2154.566112
YSZ-203/4207.674118
YSZ-251251292125
YSZ-3211/43222131137
YSZ-4011/24030139150
YSZ-5025048151160
YSZ-40S11/240301701730.5~7 barValve Nylon PA66
YSZ-50S25048170173
